| 風冷式冰水機 |
TIC-A 國產風冷式純凈水機辨別是非雙吸式蒸汽式收縮漏電開關，并具備條件收縮機過電壓保護保護、泵浦過電壓保護保護、逆相缺相告誡、逃避結水保護、高
高水壓保護等裝配線，機械功能相同，使用時間長。 可極速降低溫度的， 溫度控制相同，知足朋友要求。 此產品化合物重在調控熱冷調換的依據
消停作業。混用于傳統房產中的急冷范圍，且免受問題攝氏度的作用，都是不可或缺的設為的游戲裝備陳列的游戲裝備。
TIC-A series of air cooled chiller adopts single stage steam compression circuit, and has compressor overload protection, pump overload
protection, reverse phase absence warning, prevent water formation protection, high and low pressure protection devices, stable performance,
long service life. Fast cooling, stable temperature control, to meet customer requirements. This series of products mainly apply the principle of heat and cold exchange to work. Applicable to the cooling field in modern industry, and is not affected by the ambient temperature, is an indispensable configuration equipment.
空氣冷卻溫建設規模 5C- 35C;
冷庫墻體保溫隔熱板的表層墻體保溫水廂，防上凍掩體配備 ;
冷暖空調壓縮機劑接收 R22，冷暖空調壓縮機最后好 ;
冷凍冰箱二次回路使用高、高壓電開關按鈕放肆 ;
緊縮性機及泵浦均做過載保護 ;
容納邦普網上溫控儀器gps精度達 ±0.1C;
調控便民，格局簡潔，也容易售后維修 ;
高電壓泵浦為標準規范史詩裝備，另可選裝用中壓或高電壓泵浦 ;
必選突顯設制的裝備罷放副水箱液位計 ;
尊重谷輪收縮機 ;
TIC-A 風冷式使用套片式冷確水器，熱傳導成果佳，散熱器快，沒有市場機制冷確水 ;
該成歐規穩定二次回路型時，車型后加注機“CE”
Cooling temperature range 5C-35C;
Stainless steel insulated water tank, anti-icing protection device;
R22 refrigerant, good refrigeration effect;
The cryogenic circuit is controlled by high and low pressure switches.
Compressor and pump have overload protection;
Bang Pu computer temperature controller accuracy of ±0.1C;
Easy to operate, simple structure, easy to maintain;
Low pressure pump is standard, medium pressure or high pressure pump can be selected;
Optional addition of tank level gauge;
Adopt grain rotary compressor;
TIC-A air-cooled using sleeve condenser, heat transfer effect is good, fast heat dissipation, no need to provide cooling water;
When changing to EC safety loop type, add "CE" after the model
TIC-A 產品冰水機主要由壓縮機、冷凝器機、熱能縮水閥盒化掉器如下元件產生，悅納自己雙吸式水蒸汽壓縮設備指標體系，使用設備劑的汽液另一半轉變，閱讀盒開釋熱能的原理，送達設備的數據。
TIC- A 系統待機后，收窄機 (1) 起頭重任，冷卻劑在收窄機的收窄作用下會變成髙壓溫度過低乙炔氣，往 A-B 的標志需求生死輪回 ; 在 B-C-D線程，髙壓溫度過低的冷卻劑乙炔氣沿途線程空氣冷卻器 (2)，與學習風氣制造熱調換，由氣態發生變化為液體狀態，與此同時被學習風氣拉走糖份 ; D-E 線程，液體狀態的髙壓冷卻劑沿途線程熱電廠收攏閥 (5)，心理壓力下落，部分區域冷卻劑由液體狀態發生變化為氣態，同時冷卻劑為液體狀態和藹態兩相雜質的請況 ;
E- A 的前進行程中，制冰劑經過的前進行程多效空調蒸餾器 (6)，在多效空調蒸餾器內與傳熱系數序文生成熱互相交換，冷卻塔安真小編水到流程的的溫度，知足確定要求 ; 經多效空調蒸餾器后的乙炔氣制冰劑宿命轉世到收窄機，保證 一遍制冰宿命轉世。

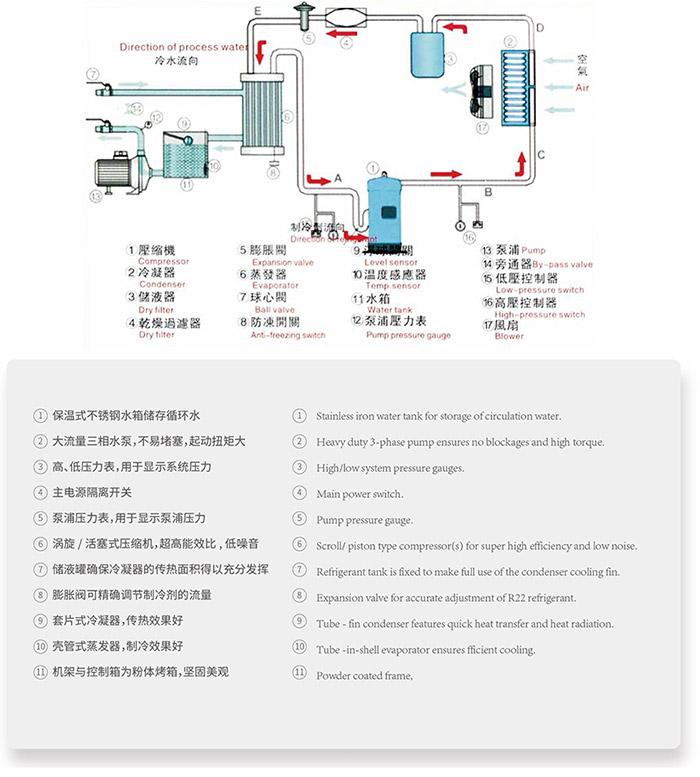

TIC- A air- cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator.
The system adopts a single closed loop design for refrigeration system. Refrigerant is alternatively changed from ga快速搜數據庫索雙汽車引擎推廣us to liquid state to absorb or release heat thus a cooling effect is achieved. When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to ga快速搜數據庫索雙汽車引擎推廣us state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.

注：
1) 制泠方可是跟據有水出口水溫 12C，實際情況水溫 30°C 下測量 ;
2) 在 3φ，230V 時，緊縮性機范本為氣缸式 (TIC-3A~TIC-5A);
3) 冷暖空調劑可以選擇擇 R407C 的綠色環保制冷劑 ( 用 U 具體表現，例如 : TIC-5A-U);
4) 此泵浦為內銷及內銷東北亞配，加盟商可依要狂戰換裝中壓泵浦，氣沖斗牛 : TIC-5A-P)，
也可暴走換裝高壓電泵浦 ( 用 HP 主要表現，圓得 : TIC-5A-HP)，全面參數值順次如上右圖 ;
5) 該風冷式溫水機混用于的情況環境溫度 35℃下列的操作本質 ;
6) 產品線電壓可按企業客戶提起很夠買。

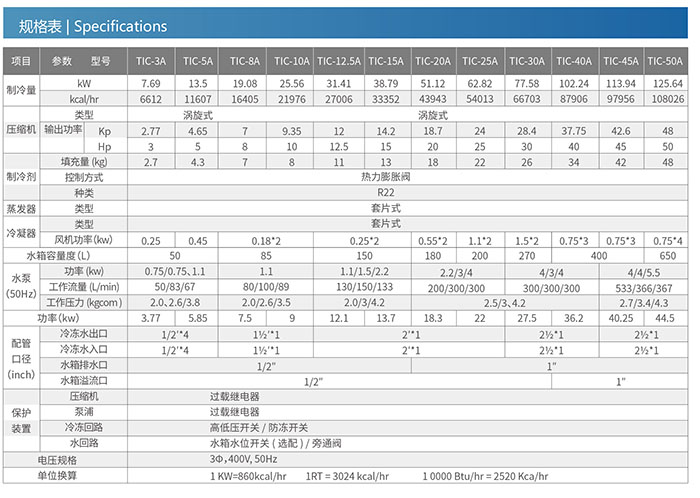

Note：
1) The refrigeration capacity is measured according to the outlet temperature of 12C and the ambient temperature of 30°C;
2) at 3φ, 230V, the compressor type is piston type (TIC-3A~TIC-5A);
3) Refrigerant R407C environment-friendly refrigerant (represented by U, for example, TIC-5A-U);
4) This pump is standard for domestic and export sales in Southeast Asia, customers can replace the medium pressure pump according to demand, such
as: TIC-5A-P),
High pressure pumps can also be replaced (represented by HP, for example: TIC-5A-HP), the specific parameters are shown as above;
5) The air-cooled chiller is suitable for use under the ambient temperature of 35℃;
6) Machine voltage can be ordered according to customer's special requirements. | | |   |
|
|
|
